Honeycomb heatsink cools BGAs in thin-profile devices

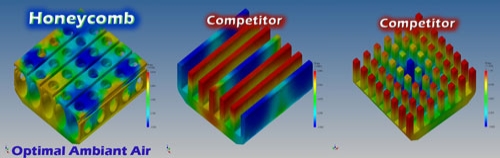

June 7, 2011 — JaroThermal’s Honeycomb heatsink directs heat towards the outside of the device, while Click to Enlargeproducing a steady flow of cool air inside the heatsink. Honeycomb heatsinks can be used with either plastic or metal/ceramic BGA packages, depending on the thermal interface material (TIM).

The design is studded with holes, helping increase surface area and cross ventilation. Ambiant air is cooled even as heat is released.

Applications include video cards, motherboards and networking applications. The design is thin, suiting compact, low-profile designs.

JARO’s adhesive mounted version eliminates the need for mounting holes in the PCB.

Jaro Thermal provides electronics thermal management technologies. Learn more about the product at http://www.jarothermal.com/honeycomb.pdf (PDF)
