IFTLE 103 2012 IMAPS AZ Device Pkging Conf; Fujitsu Low Temp Cu-Cu Bonding

It’s been over for a few months now, but IMAPS was a bit slow this year gathering the presentations from their device packaging conference, This is however understandable and excusable due to the untimely death of IMAPS employee Jackie Joyner. So let’s begin looking at the 2.5/3D and significant advanced packaging papers.

SSEC Wet Etch for Via Reveal

Laura Mauer of SSEC discussed silicon wafer thinning to reveal Cu TSV. The standard via reveal processis shown below. SSEC contends that a KOH wet etch process can be used for the final Si removal without etching the oxide liner. This can be sealed with oxide/nitride and then CMP’ed to expose the Cu vias.

Wet etch with HF/HNO3 has also been proposed by ASET and shown to have minimal impact on the electrical characteristics of the transistors [link].
Asahi Glass TGV (Through Glass Vias)
Takahashi of AGC discussed the fabrication of TSV in glass. They have been able to fabricate TGV with a  193 nm ArF excimer laser by using short pulse width (20-30 ns). The TGV do have significant slope. Better results are achieved when the glass is processed at elevated temperature ( i.e 200C)

Focused electrical discharge can also be used to process TGV in less than 1 ms. AGC claims that there is no physical limit to TGV diameter using electrical discharge. Electrical discharge TGV show smooth sidewalls and rounded via edges. Similar to the laser process the process requires no masks.
Underfill options – Hitachi, Lord, Dow
Hitachi Chemical discussed non cnductive pastes and films. Packaging in general is moving towards finer pitch and smaller gaps requiring a change in underfill materials and procedures.  NCP and NCF applicable for fine pitch and narrow gaps. In terms of pad finish, Hitachi notes that Cu with OSP "is more difficult to have a good connection."
Lord detailed their screen printable NCP ( Tg = 166 C; Mod = 4.1 Gpa) with built in fluxing agent which allows them to do cu-cu bonding on oxidized cu studs. Similarly Dow presented data on their new pre applied underfill (WUF) films with the following materials properties:

Vacuum lamination is preferred and curing is done at 175C for 1 hr. Voiding seen after bonding can be eliminated by pressure curing or optimizing the film thickness. Initial reliability tests indicate good adhesion through MSL-3- 260 C and TCT cond B.
Fujitsu Low Temp Copper-copper Bonding
Fujitsu described further advances in their low temp Cu-Cu bonding technology [link].
Their unique process uses a diamond bit milling machine to achieve a highly uniform and highly polished (7 nm surface vs 210 as plated) which can be thermo-compression bonded at RT and shows grain growth across the interface at 200 – 250C vs 350 C+ for a  standard CMP’ed surface.


Underfill and Cu bumps can be simultaneously cut together by diamond bit with no residue on bump, but hybrid copper/underfill interface exposed to formic acid before bonding "could not sustain arranged location during bonding process." However, if the interface is bonded first and then exposed to formic acid, "partially exposed," clearly grain growth occurs as low as 140 C.



For all the latest on 2.5/3D IC and advanced packaging stay linked to IFTLE…………………….

IFTLE 102 “3.5D Interposers to someday replace PWBs” – TSMC; GF engaging with 3D customers; Intel predicts Consolidation

3.5D Interposers

At the 15th Symposium on Polymers for Microelectronics held last week in Wilmington DE, TSMC’s Doug Yu, Sr. Dir. of front end and back end technology development,  challenged the current nomenclature for interposers and suggested that the more versatile interposer technology should be called 3.5D instead of 2.5D since it is, and will be, capable of much more than the simple 3D stack.

The term 2.5D is usually credited to ASE’s Ho Ming Tong who ~ 2009 (or even earlier)  declared  that we might need an intermediate step towards 3D since the infrastructure and standards were not ready yet.  The silicon interposer, Tong felt, would get us a major part of the way there, and could be ready sooner than 3D technology,  thus the term 2.5D, which immediately caught on with other practitioners.

Yu’s new position is that interposer technology actually is more versatile and thus should be called 3.5D since it  not only offer a better thermal solution than 3D, but "…can  some day replace most of the high density PC boards." Yu’s position is that this modular silicon technology will need minimum low density PCB substrate to connect the functions that have been fabricated on silicon and will be, in essence, the perfect "fab centric" solution. Yu proceeded to show how future smartphones and tablets could be made up of such simple 3.5D silicon modules. More from the Polymers for Electronics meeting coming soon at IFTLE.

Global Foundries 2.5/3D Announcement

GLOBALFOUNDRIES has announced the installation of TSV production tools for the company’s 20nm technology platform. CTO Bartlett announced that they were  "…engaging early with partners to jointly develop packaging solutions that will enable the next wave of innovation in the industry." The first full flow silicon with TSVs is expected to start running at Fab 8 (Saratoga NY)  in Q3 2012 with mass production expected in 2014. GF is also preparing for  a 2.5D line within its Fab 7 facility in Singapore with a similar time schedule as the 3D line in the United States.

While arch competitor TSMC has announced a one-stop-shop turnkey line which includes all of the assembly and test steps traditionally handled by the OSATS [see: "TSMCrepeats call for foundry-centric 2.5/3D industry"], GF proposes to handle  TSV fabrication (Cu , vias middle) and other front-end steps while typical backend  processes such as temporary bonding/debonding, thinning, assembly and test will be done by their OSAT partners such as Amkor [ see IFTLE 65 "….. GLOBALFOUNDRIES Packaging Alliance…" GlobalFoundries reports that they will define a PDK with its partners, initially they are looking at 6 um vias on a  40-to-50um pitch.

Intel agrees – Its all in the Economics

At the recent Intel analyst day CEO Paul Otellini CEO predicted that the increasing cost of manufacturing in the IC industry would result in consolidation that  will "…only leave two or three companies at the leading edge of chip design." Otellini reports that "Gordon Moore predicted a thinning out of chip fabrication facilities once the cost of a new 200mm wafer manufacturing plant hit $1bn, but he was a little too early."

With the cost of a 300mm fab expected to exceed $5B at the 28 nm node and  450mm wafer fabs that are projected to cost more than $10B apiece few companies will have enough volume to absorb such costs.

Readers of IFTLE know that we have been predicting this outcome for several years [ see PFTLE "IC Consolidation, Node scaling and 3DIC". Nice to see that Intel  agrees, although this will severely limit options for customes of the latest node technologies.

If you look at this strictly in terms of economics, HVM players at 22 nm should be limited to :

Logic – Intel, Samsung, ST Micro

Memory – Samsung, Toshiba, Micron/Elpida, Hynix ?

Foundries – TSMC, GF

That’s less than 10 total players on the leading edge moving forward. Better start getting used to it !

For all the latest on 3DIC and advanced packaging stay linked to IFTLE……………….

IFTLE 102 â????????3.5D Interposers to someday replace PWBsâ???????? – TSMC; GF engaging with 3D customers; Intel predicts Consolidation

3.5D Interposers

At the 15th Symposium on Polymers for Microelectronics held last week in Wilmington DE, TSMCâÂ??Â??s Doug Yu, Sr. Dir. of front end and back end technology development,  challenged the current nomenclature for interposers and suggested that the more versatile interposer technology should be called 3.5D instead of 2.5D since it is, and will be, capable of much more than the simple 3D stack.

The term 2.5D is usually credited to ASE’s Ho Ming Tong who ~ 2009 (or even earlier)  declared  that we might need an intermediate step towards 3D since the infrastructure and standards were not ready yet.  The silicon interposer, Tong felt, would get us a major part of the way there, and could be ready sooner than 3D technology,  thus the term 2.5D, which immediately caught on with other practitioners.

Yu’s new position is that interposer technology actually is more versatile and thus should be called 3.5D since it  not only offer a better thermal solution than 3D, but "…can  some day replace most of the high density PC boards." Yu’s position is that this modular silicon technology will need minimum low density PCB substrate to connect the functions that have been fabricated on silicon and will be, in essence, the perfect "fab centric" solution. Yu proceeded to show how future smartphones and tablets could be made up of such simple 3.5D silicon modules. More from the Polymers for Electronics meeting coming soon at IFTLE.

Global Foundries 2.5/3D Announcement

GLOBALFOUNDRIES has announced the installation of TSV production tools for the company’s 20nm technology platform. CTO Bartlett announced that they were  "…engaging early with partners to jointly develop packaging solutions that will enable the next wave of innovation in the industry." The first full flow silicon with TSVs is expected to start running at Fab 8 (Saratoga NY)  in Q3 2012 with mass production expected in 2014. GF is also preparing for  a 2.5D line within its Fab 7 facility in Singapore with a similar time schedule as the 3D line in the United States.

While arch competitor TSMC has announced a one-stop-shop turnkey line which includes all of the assembly and test steps traditionally handled by the OSATS [see: "TSMCrepeats call for foundry-centric 2.5/3D industry"], GF proposes to handle  TSV fabrication (Cu , vias middle) and other front-end steps while typical backend  processes such as temporary bonding/debonding, thinning, assembly and test will be done by their OSAT partners such as Amkor [ see IFTLE 65 "….. GLOBALFOUNDRIES Packaging Alliance…" GlobalFoundries reports that they will define a PDK with its partners, initially they are looking at 6 um vias on a  40-to-50um pitch.

Intel agrees – Its all in the Economics

At the recent Intel analyst day CEO Paul Otellini CEO predicted that the increasing cost of manufacturing in the IC industry would result in consolidation that  will "…only leave two or three companies at the leading edge of chip design." Otellini reports that "Gordon Moore predicted a thinning out of chip fabrication facilities once the cost of a new 200mm wafer manufacturing plant hit $1bn, but he was a little too early."

With the cost of a 300mm fab expected to exceed $5B at the 28 nm node and  450mm wafer fabs that are projected to cost more than $10B apiece few companies will have enough volume to absorb such costs.

Readers of IFTLE know that we have been predicting this outcome for several years [ see PFTLE "IC Consolidation, Node scaling and 3DIC". Nice to see that Intel  agrees, although this will severely limit options for customes of the latest node technologies.

If you look at this strictly in terms of economics, HVM players at 22 nm should be limited to :

Logic – Intel, Samsung, ST Micro

Memory – Samsung, Toshiba, Micron/Elpida, Hynix ?

Foundries – TSMC, GF

That’s less than 10 total players on the leading edge moving forward. Better start getting used to it !

For all the latest on 3DIC and advanced packaging stay linked to IFTLE……………….

IFTLE 101 Advanced Packaging at IMAPS MINIPAD part 2

Continuing with our examination of advanced packaging at the 2012 IMAPS MINIPAD.

ST Micro reported on stress induced fine pitch copper pillar failures. Compared to solder bump, Cu pillar bumping is known to possess good electrical properties, better electromigration performance and better thermal fatigue resistance . The only drawback is that Cu pillar bump can introduce high stress due to Cu higher stiffness compared to the solder material. Therefore, the stress induced failures become a major issue when Cu pillar bump is built on low k or extreme low k (ELK) chips. In this ST Micro study, fine pitch copper pillar has been assessed vs polyimide effectiveness for fine pitch Cu pillar interconnections having small pillar diameter.

(Click on any of the images below to enlarge them.)

Vehicle1 (package 2 configuration) used extreme lowk ILD materials. Die were attached on the substrate without underfill and underwent several die attach reflow cycles to induce failure and define the more robust configuration. The no PI leg did not evidence any defect up to 20 reflows but the PI passivated leg showed 100% failure after 20 reflows which appear to be stress induced failures ( likely to be crack in aluminum pads ).


Results after reliability tests show that the implementation of polyimide for fine pitch Cu pillar is not obvious. Thus, in the case of PI configuration, failure analysis reveals three main failure modes: delamination at the Bump/PI/pad and copper stress voiding in the pad metal in stacked vias structures, both occurring during thermal cycles. Delamination in the low-k layers has been also found for the highest die size in the PI configuration. All those analyses have revealed that for the tested configurations, higher stress has been observed with the PI configuration compared to the no PI one.

FEA was done to better understand these results. In the No Polyimide configuration, the stress is spread along the pad structure thanks to the higher copper contact. Indeed, the passivation layers (i.e. SiN and PSG layers) have sufficient mechanical properties to transfer the stress to the beneath layers. In the PI configuration, high peak stress is observed beneath the Copper/Aluminum interface. On the contrary, in the No PI configuration, the stress is spread along the pad structure thanks to the higher contact of Copper pillar bump.

STATSChipPAC looked at some "Advanced Ultrathin eWLB-PoP solutions." eWLB has been introduced into production to allow for higher ball count WLP, by extending the package size beyond the area of the chip. There is also great opportunity related to a 3D variation of eWLB which would allow for mounting of components or another package on the top surface with thinner profile and PoP (Package-on-Package) technology.
The table below shows reliability for such stacked test vehicles.
Bernd Appelt of ASE continued the theme of thinner is better with his presentation "Ultra Slim Packages with Ultra Slim Substrates" There is no question as the figure below shows devices continue to get thinner.

 JEDEC package heights are defined as follows:

The ASE package family fits these dimensions as follows:
Substrate thickness vs package thickness are shown on the following chart:
The ASE embedded technology a-EASI (adv embedded assembly solution integration). They are undergoing customer evaluation with embedded actives and passives.
FCI presented the latest n their ChipletT(TM) and ChipsetT(TM) embedded die fan-out packaging based on multilayer flex. We discussed this technology in detail last fall [see IFTLE 83, "Orange County 3DIC Workshop"]
Below we see a nice example of what can be done with this technology, i.e a 50% reduction in footprint by embedding the ASIC die.




For all the latest in 3DIC and advance packaging stay linked to IFTLE………………….

IFTLE 100 IMAPS MINAPAD Addresses Advanced Packaging in Grenoble

"I’ve been a big fan of Phil’s ever since his first blog in August of 2007. Did you know he was born in Hell’s Kitchen in New York City? Congratulations to the world’s foremost expert on 3D integration on his 100th blog!" — Peter Singer, Editor-in-Chief, Solid State Technology

Dr. Phil Garrou has been blogging for years on the evolution of semiconductor assembly and packaging technologies. In his first 100 blog posts, he’s covered the emergence and explosion of 3D packaging, and most recently, the "2.5D" innovation of interposers.

To celebrate Dr. Garrou’s 100th post to Insights from the Leading Edge, we’ve compiled a list of his top 10 best-read recent blogs. You’ll find them at the end of this post………………

IMAPS France held the 2nd Micro/Nano-Electronics Packaging, Assembly, Design and Manufacturing Forum (MiNaPAD) in Grenoble in late April.

Jean-Marc Yannou, President of IMAPS France gave a Yole market update on 3DIC and TSV interconnects indicating that Wafer-level-packages are the fastest growing semiconductor packaging technology with more than 27% CAGR in units and 20% in wafers over the next 5 years to come.

(Click on any of the images below to enlarge them)

Yannou also repeated rumors that "Power 8 by IBM believed to be based on 3D interposers; Haswel, Intel GPU on 2.5D interposers for laptops with lots of on board memory and ultra large data bus. "
Leti gave an update on the 3DICE program being done under the European Unions 7th Framework with partners Datacon, Disco, EVG and ST Micro. Below find the unit operations that are part of the program and those responsible. They have concluded that B2F has less operations and is easier to accomplish than F2F.
Back to face attach can be done with die attach film, full sheet bonding layer or patterned bonding layer.
B2F pick and place with a Datacon 2200 can reportedly handle 20um thick die with 7um accuracy in 3 sec. Plasma stress relief allows for thin die handling by increasing die strength.
Thin die encapsulation can be accomplished in several ways i.e by conformal CVD deposition (oxide or parylene), by spin/spray coating of solutions (BCB, PI, ALX) or by film lamination. Die are bevel cut at 45 degrees to make subsequent metallization easier.
Thermo-mechanical stress in these combinations were examined.

EVG gave more details on the release process for their ZoneBond TB/DB (temp bond/debond) process.

– Adhesive ring dissolution is enhanced by magasonics
– Low force, room temperature separation
– Compatible with both glass and Si carriers
– Adhesives are (solvent)cleanable
– Platform enables use of a wide range of materials, i.e. ZoneBond Open Platform
The anti sticking layer showed a temperature stability up to 300C for 20 min. Carrier wafers were bonded and debonded 25x.
Rolf Aschenbrenner of the Fraunhoffer IZM made an in depth presentation on "Molding
technologies  – A new way for system integration" specifically looking at options for today’s transfer molding and compression molding technologies.

While transfer molding has been used for years to make plastic packaged parts, compression molding has recently become in vogue as part of the embedded chip technology package, i.e molded reconfigured wafers.

They propose the following roadmap for system integration with molding.

ST Micro presented some electromigration details on SnAgCu interconnect for WLB packages.
They find that:
– IMC induces resistance increase right after stress beginning
– Electrical open is due to voiding in solder, at Cu3Sn interface, after Cu6Sn5 disappeared
Since the electrical opens are due to voids at the RDL/solder interface a solution is to insure that the enclosure around the solder ball is large enough and increase the RDL thickness as much as possible.

We will have more MINAPAD review in next week’s IFTLE.
For all the latest in 3DIC and Advanced Packaging stay linked to IFTLE……………………..

10 Must-Read Insights from the Leading Edge:
1. Apple and TSVs, top chip makers, and "betting the ranch"

This post investigated Apple’s possible move to TSVs for its A6 chip, and compared capex numbers to the Western trope of "betting the ranch." Apple’s semiconductor roadmap, and the advanced packaging technology of TSVs combined for a compelling read. Link: http://electroiq.com/blogs/insights_from_leading_edge/2012/02/iftle-88-apple-tsv-interposer-rumors-betting-the-ranch-tsv-for-sony-ps-4-top-chip-fabricators-i.html

2. LED market is about to explode

While Insights from the Leading Edge covers a great deal of 3D packaging news, that doesn’t mean that there are no other very significant packaging evolutions and market opportunities going on at the same time. Certainly the LED space is one of those, Dr. Garrou said, and readers agreed.

Link: http://electroiq.com/blogs/insights_from_leading_edge/2011/11/iftle-75-led-market-is-about-to-explode.html

3. Bidding Adieu to Lester Lightbulb

Lester Lightbulb has become something of a favorite character on Insights from the Leading Edge, as Dr. Garrou carries out an in-home energy/cost savings analysis of conventional incandescent lightbulbs, CFLs, and LEDs.

Link: http://electroiq.com/blogs/insights_from_leading_edge/2011/08/iftle-63-bidding-adieu-to-lester-lightbulb.html

4. Advances in CMOS Image Sensing

In the fall of 2007, Toshiba first announced the commercialization of TSV in a CMOS image sensor (CIS). The next step of circuit repartitioning and stacking was interrupted by back side imaging, which flipped the chip over and let the light enter through the least obstructed side to let more light in per pixel. Now, we consider today’s CIS advances.

Link: http://electroiq.com/blogs/insights_from_leading_edge/2012/02/iftle-89-advances-in-cmos-image-sensing.html

5. Cell Phones and Memory Consolidation

The cellphone continues to pull in the functionality of digital cameras, PDAs, GPS navigators, mobile TV and numerous other applications. It is quickly becoming the dominant market driver for virtually all of these functions.

Link: http://electroiq.com/blogs/insights_from_leading_edge/2011/10/iftle-69-cell-phones-and-memory-consolidation.html

6. How Xilinx fit 6.8B transistors on its 2.5D FPGA

Garrou reviews Xilinx’s new FPGA, with 10,000 connections on a silicon interposer, using "2.5D packaging."

Link: http://electroiq.com/blogs/insights_from_leading_edge/2011/10/iftle-73-xilinx-shows-2-5d-virtex-7-at-imaps-2011.html

7. MEPTEC 2.5, 3D and beyond

Reporting from MEPTEC and SEMI’s "2.5D, 3D and Beyond Bringing 3D Integration to the Packaging Mainstream" Conference in 2011, Dr. Garrou shares highlights from Amkor, GLOBALFOUNDRIES, and other presenters.

Link: http://electroiq.com/blogs/insights_from_leading_edge/2011/11/iftle-77-meptec-2-5-3d-and-beyond.html

8. Fine Pitch Microjoints, Cu Pillar Bump-on-Lead, Xilinx Interposer Reliability

Dr. Garrou looks at packaging activities at the 2011 ECTC, including presentations from Qualcomm and STATS ChipPAC, Fraunhofer IZM, Xilinx (interposers!), and others.

Link: http://electroiq.com/blogs/insights_from_leading_edge/2011/07/iftle-58-fine-pitch-microjoints-cu-pillar-bump-on-lead-xilinx-interposer-reliability.html

9. TSV from 1999 to today, and more on the Micron HMC

Dr. Garrou shows us the evolution of TSV from 1999 through to today, checks in on MU’s HMC, and analyzes some recent packaging news.

Link: http://electroiq.com/blogs/insights_from_leading_edge/2012/04/iftle-95-3dic-time-flies-when-you-re-having-fun-further-details-on-the-micron-hmc-equipment-su.html

10. Defining 3D, and Canon’s packaging equipment foray

Garrou explains the variety of 3D packaging terms with a little help from "Raymond J. Johnson Jr." He also notes Canon’s back-end equipment entry.

Link: http://electroiq.com/blogs/insights_from_leading_edge/2011/08/iftle-62-3d-and-interposers-nomenclature-confusion-equipment-market-shift-to-pkging-continues.html

Here’s to 100 more Insights from the Leading Edge blog posts!

IFTLE 99 Electronic Design Process Symp (EDPS) focuses on 3DIC

A few weeks ago EDPS (the Electronic Design Process Symp) held a 3D day in Monterey CA. Riko Radojcic of Qualcomm gave a plenary on the “Roadmap for Design and EDA Infrastructure for 3D Products” and Arif Rahman, Altera, Steve Pateras, Mentor, Mac Greenberg and Bassillos Petrakis of Cadence followed in a session chaired by Herb Reiter of eda2asic, with  presentations on design and test challenges.

Qualcomm

Radojcic showed the following Xsect as what is becoming “mainstream technology” consistent with what the recent IMAPS DPC panel had to say [see IFTLE 94, “Experts Discuss Interposer Infrastucture at IMAPS Conference”] with 5 x 50 Cu TSV and solder capped copper pillar interconnect.

(Click on any of the images below to enlarge them)

It was good to hear Radojcic comment that “there are no intrinsic process technology show stoppers for memory on logic “ and that we just needed to get into volume production so we could exercise the processes.
For memory on logic he proposed the following as the status of the design environment:
Although Qualcomm has publically stated many times in the past that they ae not fans of interposers since they will increase the size of the devices while adding cost (amongst other things), Radojcic offered the following interposer challenges:
– low cost with fab like (1um pitch) routing may be hard
– timing driven routing may be had
– pre stack test may be hard
– managing Si with floating substrate may be hard

– fitting a small form factor at system level may be hard

Altera
Rahman’s talk for Altera centered on EDA needs for FPGAs. Altera had recently announced a program with TSMC to develop   heterogeneous 3D solutions that would combine an FPGA with a customer’s intellectual property, ranging from CPUs, ASICs,  ASSPs,  memory and optics.

TSMC is providing the end-to-end CoWoS (Chip-on-wafer-on-substrate — the internal TSMC name for their 2.5D process) process, including the front-end manufacturing of the die and the back-end assembly and test of the bare die on an interposer with TSVs connecting the bare die.
The Altera/TSMC team have developed a heterogeneous 3DIC test vehicle for this program.

Cadence



The theme for Bansal and Greenberg of Cadence was that “Wide-IO is driving 3DIC TSV”

We have discussed the easoning behind and the status of wide IO in the past [see IFTLE 87, “JEDEC wide IO standards…”] . Bansal shows a nice roadmap for future wide IO standards, and shows
why wide IO will be needed in future products:
They conclude that Cadence stands ready with EDA tools and IP to enable your TSV designs with real experiences and partnerships with ~8 test chips and 1 production chip already completed.
We have discussed the Cadence [see IFTLE 72 “2011 IEEE 3 Test Wokshop”] and Mentor Gaphics DfT [see IFTLE 83, "Orange County 3DIC Workshop"] work on DfT previously. At EDPS both Bassilios (Cadence) and Pateras (Mentor) further discussed evolving BIST and other test flows for 3DIC.  I suggest you go to their respective web pages for complete detail on these important  test options.
Follow up on Lester the Lightbulb
These supportive messages were sent to me following last week’s blog:
"I started keeping receipts and writing down the dates on CFL bulbs I have purchased and so far have received three free replacements from the manufacturer as they tend to die in about a year [like incandescants] instead of 8000 hrs. This may in fact be the true savings to savvy consumers, as I may never have to buy another bulb again!!!"
“Thank you for being one of the ‘voices of reason’ in the LED debate.”
…………………….
For all the latest on 3DIC and advanced packaging stay linked to IFTLE………..

and proposed that the following gaps currently exist.

IFTLE 98 Lester the Lightbulb vs CFL and LED : the Saga Continues

In IFTLE 63 [ see IFTLE 63, “Bidding Adieu to Lester Lightbulb] back in Aug 2011 IFTLE attempted to make the case that our little 25 cent friend Lester the incandescent bulb had gotten a bump rap as he awaited extinction on death row.

It’s not that the claims of the newer technologies (CFL and LED) using less power than incandescent bulbs are invalid, but rather what appears to be the  bold faced lie that their much greater cost is  compensated by their decades long  lifetimes that upsets all Lester supporters.

My initial rant and my follow up comments [see IFTLE 82 “3DIC at the 2011…LED testing update”] tried to point out that the testing procedures were highly skewed to make things look like these new technologies were producing bulbs that would last forever. The main issue for me was that the other components found in teardowns of the LED bulbs certainly were not built to survive the LED lifetimes that were being claimed and the new bulbs will only last as long as their weakest component.

Our installed test LED and CFL bulbs  have now cleared 650 hrs of use. Only 24,000 more hrs to go to meet specs !

First a little update on pricing as of March 2012. The CFL are down to $4 each as shown below. They are still promising 9.1 years lifetime while using ¼ the power of an incandescent bulb. Oh yes, another minor issue is that when the do burn out it is recommended that you visit the EPA site to determine safe disposal…really that’s what it says !

(Click on any of the images below to enlarge them.)

The Phillips LED bulb ( 75W equivalent since no 100 W equivalents are for sale yet) are selling for $40 at Home Depot with an incredible “expected lifetime “ of 22.8 years. Well at least you don’t have to contact EPA to determine how to dispose of them.

IFTLE has found several more articles indicating that our concerns were/are justified. For example Bill Schweber’s guest commentary in EE Times,  “CFLs and their issues" [1/10/2012] . “My concerns are with the lies that have been told to Congress and the public regarding lifetimes of the new technologies (CFL and especially LED), and the significant increase in toxic materials associated with the disposal of these short-lived cheaply made devices.”

"Although the lifetime of the LED devices may be rated at 40,000 to 100,000 hours at an appropriate temperature, just like we have all experienced with CFLs, the actual life of the device is generally much shorter due to higher temperature of operation of the device and due to the non-LED components in the assembly. After disassembly of several failed CFL devices and some LED devices, we as a community should understand that the cheap manufacture of such devices will lead to serious pushback and disillusionment of our customers.”

"The use of aluminum capacitors in CFL and LED Edison-base devices should be avoided at all costs, and yet it seems that every CFL and LED device I have disassembled, and the photos of every such device I have seen postings of disassembly for, use cheap aluminum capacitors with low temperature ratings. As consumers, most of us are aware that the CFL and LED Edison-base devices fail rapidly in closed fixtures, in outdoor use, in refrigerators and oven use…LED power output are specified at 25° and unless properly heatsinked, the higher the temperature the less light output with aging and less service life, probably 70° max temp is acceptable, but many work above this limit, so life span is not what is publicized.”

Giving credit where credit is due, IFTLE should note that the DOE takes a  good look at these issues in their second LED report “LED LUMINAIRE LIFETIME: Recommendations for Testing and Reporting” [June 2011].

Quoting from this report : The statement “100,000 hours of LED luminaire lifetime” is gradually giving way to the realization that there is little consistency, very little published data, and few hard facts around so-called luminaire lifetime numbers…sometimes only lumen depreciation…of the LEDs is considered in estimating useful life of the luminaire product…a problem, since failure or degradation of drivers, optics, or other components can lead to  total failure. Like other parts of the lighting system, the devices and components used to convert line power to direct current suitable to drive and control LEDs affect lifetime and reliability. Capacitors, inductors, transformers, opto-isolators, and other electrical components all have different design lifetimes, are affected by operating and ambient temperature, and are vulnerable to electrical operating parameter variations from surges, spikes, and so forth. An effective LED system-reliability evaluation must take all of these aspects into consideration… Additional information that should be readily available to the purchaser, although not on the label itself, should include maximum ambient temperature of operation to achieve this depreciation performance, the number of hours actually tested on which the projection is based, and the type of projection…”

These modifications to the initial DOE report were driven by articles such as  “LED Driver Lifetime and Reliability hold thekey to success in LED Lighting Projects” by George Mao and Marshal Miles in the Sept/Oct 2010 issue of LED magazine.

Mao and Miles contend that “the light engine of properly designed LED lighting systems should last for up to 50,000 hrs. However, unless the power electronics…are designed for the correspondingly long life and high reliability, this will not be realized”

Estimating the life of any product is primarily a matter of identifying all known wear out mechanisms and identifying the shortest lived component in the system that will render the product inoperable” Their choice for the component that would fail in the shortest time is the electrolytic capacitor. The temp that the fixture operates at appears to be a determining factor in the lifetime of such components.

Another concern is the hype surrounding how much money will be saved. IFTLE found this nifty little calculator on the Consumers Power web page. [link]

What I have totaled up in the table below is pretty close to what power costs me in my NC home. Basically, for me , air conditioning is 75% of my power bill and even in the winter  Lester (incandescent bulbs) only account for 13 % of my power bill.
Since this comes pretty close to my summer and winter electric bills, it shows that cutting my lighting bill by ¾ would save me ~ 36$ a year ( 3$ per month) which would pay for  less than 1 LED bulb per year and take me 25 years to break even on bulb replacement  in my house. It also confirms, for me, that in the average household, replacement of all the bulbs in the house with LEDs would not be seen on your monthly power bill. Sorry but the $3 savings will be lost in the noise.
On the country’s overall energy bill you may be able to see the effect, but on the average consumers monthly power bill, after spending $1000 to replace all the bulbs with LEDs, you will not ! The public is clearly being deceived !
Our friend Lester was set up, framed and is about to be executed for “the big energy lie” !
                                                  STOP the BS, SAVE LESTER the LIGHTBULB !
For all the latest in 3DIC and advanced packaging stay linked to IFTLE………..

IFTLE 97 DATE in Dresden, Synopsys 3D EDA Solution

This year’s Design, Automation and Test Europe Conference [DATE] was held in Dresden.  This year’s 1 day 3D Integration workshop was headed up by Sandeep K. Goel (TSMC), Qiang Xu (Univ Hong Kong) and  Saqib Khursheed (University of Southampton).

ARM, IMEC and the Swiss Federal Institute of Technology (EPFL) gave an interesting presentation on the "Performance and Efficiency of 3D Stacked DRAM in a Multicore System." The goal of this 2010 – 2012 European commission funded project, known as "Euro Cloud," is to integrate ARM processor cores with 3D DRAM for very dense, low power data centers for mobile cloud services for hand held devices. Coupling of high performance ARM Cortex processors with 3D memory is  targeting the mobile cloud services from Nokia which will serve millions of "mobile handsets."  Their analysis shows that although 3D-stacked DRAM, such as Wide-IO, allow for wider buses by providing increased pin density, the wider buses saturate in providing additional throughput. The authors propose that rather than increasing the width, more channels that are effectively managed by memory controllers lead to increased overall system performance. They also conclude that 2.5D is preferable to 3D for systems with challenging thermal performance.

(Click on any of the images below to enlarge them)

Hsien-Hsin Lee of Georgia Tech presented more details on their 3D MAPS massively parallel processor with stacked memory [we have discussed this previously in IFTLE 93, "2.5 / 3D at the 2012 IEEE ISSCC"]
Of interest were their designs for V2 which will have 5 layers and a wide IO interface. It is shown schematically below with proposed specs compared to 3D MAPS 1
The Fraunhofer ASSID group presented their thoughts on quality inspection strategies for 3D chip processes. Their concept is that I line metrology is needed to save time and materials.
TSV metrology tasks include : determination of uniform TSV depth; barrier and seed defects and voids during TSV filling and  determination of bump height and coplanarity in copper pillar bump interconnect.
Synopsis unveils its 3DIC EDA solution
Synopsys recently  unveiled its comprehensive EDA solution, including enhanced versions of its IC implementation and circuit simulation products.
Synopsys reports that they are  delivering a comprehensive EDA solution including :

-DFTMAX: design-for-test for stacked die and TSV
-DesignWare STAR Memory System: integrated memory test, diagnostic and repair solution
-IC Compiler: place-and-route support, including TSV, microbump, silicon interposer redistribution layer (RDL) and signal routing, power mesh creation and interconnect checks
-StarRC Ultra: parasitic extraction support for TSV, microbump, interposer RDL and signal routing metal
-HSPICE and CustomSim circuit simulation: multi-die interconnect analysis
-PrimeRail: IR-drop and EM analysis
-IC Validator: DRC for microbumps and TSVs, LVS connectivity checking between stacked die
-Galaxy Custom Designer: specialized custom edits to silicon interposer RDL, signal routing and power mesh
-Sentaurus Interconnect: thermo-mechanical stress analysis to evaluate the impact of TSVs and microbumps used in multi-die stacks
The Synopsys 3D-IC solution is expected to be in production in calendar Q2 of 2012.
For all the latest in 3DIC and advanced packaging stay linked to IFTLE………………..

IFTLE 96 A New Concept for a 3DIC Conference; Granddaughter Update

In the past IFTLE has ranted about how every technical conference on the face of the planet wanting  a piece of the 3D integration pie and how that is propagating severe redundancy in the presentations that are being given.  Paying $500 + travel expenses for a conference that gives you 15 3D presentations when you have already seen 12 of them under slightly modified titles can be upsetting. Going to a conference that gives you 1 session of  3DIC presentations and you’ve seen all 5 of them is even worse.  I don’t blame the presenters,  because I know they are being begged by the session chairs to submit their presentations even if they admit that they have nothing new to say.

Having said that, I must admit I was intrigued by the concept of the new conference “Connect in 3D” being sponsored by Yole Developpement this coming  fall ( Oct 31st / Nov 1st). For those of you who haven’t seen the advertising blurb try this link [link]

The concept originated with Brian Perkins of Highliner Events (yes that would be Jeff Perkins brother – isn’t nepotism great).  While many conferences try to set up their schedule so that the attendees can have “quality networking time”  Brian’s concept is to  have a conference that is basically all networking complete with terms like “speed dating”.  Will it work for a technical area like ours ?

IFTLE decided to throw some questions Brian and Jeff’s way so we can all get a better understanding about how this works.

IFTLE: Brian How did this “connect” program come about ? Has it been used in other technical venues and if so how has it worked.

BP: The real value of a conference is no longer the presentations, keynote addresses, or even white-papers. It is the decision-makers and influencers who attend—and the networking and collaboration  that occurs between them at the event—that are truly high-value. Networking is the Holy Grail of event value, and our Collaboration SummitsSM are designed to deliver the maximum networking opportunities in a variety of pre-scheduled, formal and informal formats with a minimum of ‘pre-packaged’ content. Yole has used the technique for a MEMS event, I’ll let Jeff address how he felt that went.
 ï»¿ JP: We launched our first event with Highliner last year targeting the MEMS inertial sensor space. Attendees at  the inaugural “MEMS in Motion” event really embraced the format.  As a technical crowd, they “got it” very quickly, everyone used the software tools to the max and respected every meeting time limit – making the absolute most of their time.  Attendees gave us a 100% satisfaction rating. This event design is an iterative and evolving process. These second edition Collaboration Summits have been revised based on feedback and observations made during the first event. We will continue to respond to the market as it dictates.

IFTLE: Will attendance be capped by total or by company ?
JP: We would like to see no more than 200 participants. At sometime we might also consider capping the number of participants from a single company. The value proposition being more companies participating is better.
IFTLE: If I have read the material correctly it looks like two types of meeting are set up. Some by the attendee and some by a computer which matches up attendees randomly. Is that correct? How does this work?
BP:   The bulk of the meetings are scheduled by the attendees themselves.  Attendees request, accept and or decline meetings with other attendees.  These will be 20-minute meetings with delegates of their choice, scheduled through the DealCenter online platform or at kiosks during the event. Private tables are setup for conference attendees to meet with the person(s) they made appointments with through the DealCenter. Confirmed meetings will be assigned a table number in the Connect in 3D meeting area.  In addition, there is a session where there is “speed dating” pre-arranged meetings which we will talk about in a few minutesâ??¦.
JP: The DealCenter will open in September. Registered attendees will receive instructions in September via email when the DealCenter opens. All meeting planning is done through the DealCenter platform and every registered attendee will be able to see and request meetings with all other registered attendees. To be clear though – no contact information outside of the DealCenter contact point is ever made available unless users voluntarily provide it through their own meeting invitations or sent messages. So DealCenter is a temporary networking tool, setup for each event, allowing initial contact to be made, but any expansion of that contact is entirely up to you.
IFTLE: So all the attendees will be listed and I can privately sign up for 1 on 1 meeting with any of them before I get to the meeting. Those meetings are locked in – correct ?
BP: Remember the whole concept is about choice, so when I request a meeting with you, you have three options, you can accept the meeting, you can accept the meeting but suggest a different time, or you can decline the meeting. If you accept the meeting that is locked into our respective schedules.
IFTLE: What are the chances that the person I really want to meet will get booked up and I wont get to talk to him/her ?
JP: It is entirely possible that the person you want to meet will be booked up for the 20-minute meetings, particularly if you wait until the last minute to register for the conference early bird registration really means something in this style event! However, all is not lost if they are booked – there is the possibility you will end up with a 10-minute speed dating meeting on the first day. Also there are all of the classic informal opportunities to meet: at the meals, we have extended coffee breaks and receptions. We actually enhance the ability to meet people by starting out the meeting with personal introductions. One of the key components to these events is the opening session introductions: so right after breakfast on the first day all of the participants gather in the plenary session room. We give a brief description of how the day will run, and then we begin the individual introductions.  It allows everyone to put a face with a name. If there is someone you really want to meet, you will know who they are and what they look like in the first 2 hours. You don’t have to wander around all day trying to read name badges.
 IFTLE: So how does the speed dating part work ?
BP: One of the important parts of any gathering of business professionals is the random connections that occur by serendipity. Our Meet the Market ( speed dating) meetings are designed to enhance that serendipity. These meetings will be set by the DealCenter program software a few days before the event. We want to be sure we have the maximum number of participants available to insure we capture everyone. The system will randomly pair attendees with other attendees screening for one meeting per individual from a given company and screening out anyone with whom you have already scheduled a 20-minute meeting.

IFTLE: What if speed dating assigns me to meet with a competitor, do I have to have those meetings ?

JP: The speed dating session is really about going with the flow.  We issue individual “date cards” minutes before the Meet the Market session starts and you go to each and every meeting, regardless of any sentiments you may have.  These meetings are 10 minutes – long enough to know if there is need to meet again, but not so long to make you uncomfortable.  At MEMS in Motion, even competitors that got paired up commented that they actually made a useful connection – serendipity indeed.

 IFTLE: So what is the proportion of prepared materials (plenary presentations by experts / panel discussions) vs scheduled 20 min meetings vs speed dating over the two days ?

 BP : It breaks out to be just about 1/3 each  plus all the informal networking time at meals, breaks and receptions.  If you add in this informal time the breakdown is about 25% each
IFTLE : So to sum up, this is a conference which focuses on relationship building  through 2 days of networking in Palm Springs where you can get to have direct 1:1 meetings with people you have been wanting to meet ?
JP: In today’s world we are all too busy, the real point here is to make enough of a connection so that folks will pick up the phone when you call or open and reply to an email you send.
Update on the Girls
On the way to the IMAPS  Device Pkging Conf. stopped off in TX for the weekend to see how Hannah and Maddie  were doing. Ends up it was Rodeo weekend in Houston. Trust me you have never been to a rodeo till you’ve attended one in TX.  For those of you who do not understand why the Texas football team are known as the “longhorns” … Now you do !
For all the latest in 3DIC and advanced packaging stay linked to IFTLE………………..

IFTLE 95 3DIC â???????? Time Flies When You’re Having Fun; Further Details on the Micron HMC , Equipment Suppliers Continue Consolidation, EVG Temp Adhesive Open Platform

Time Flies When You’re Having Fun with 3DIC

Seems like yesterday that the packaging world was hearing that Fujitsu, Toshiba, NEC, Oki, Renesas and others had formed a pre-competative consortium under the Association of Super Advanced Electronics Technologies  to study direct connecting of chips with through silicon vias (TSV). It seems like yesterday but it was 1999, 13 years ago.

In Feb 2005 my first article on the topic âÂ??Â??Future ICâÂ??Â??s Going VerticalâÂ??Â?? was published in Semiconductor International predicting that the industry would eventually have to move in this direction. A short month later, March 2005 I felt like a prophet when a TSV based 3D stacking approach was described by IntelâÂ??Â??s Justin Rattner (todays CTO) at the Spring Developer Forum, with statements like âÂ??Â??…stacked wafers and stacked dies using thru-silicon vias are showing promise in meeting the memory bandwidth challenge.âÂ??Â??

A year later, in April 2006 headlines from Soeul read âÂ??Â??… Samsung has developed a new "3D" package, which reduces space requirements and increases performance capabilities of today’s multi-chip packages. The company plans to use the technology to improve its NAND Flash packaging starting in 2007âÂ??Â?? Samsung announced that its new wafer-level processed stack package (WSP) rather than using wire-bonding …. micron-sized holes that penetrate through the silicon vertically to connect circuits directly – TSV. According to Samsung the technology would enable manufacturers of mobile and consumer electronics devices to achieve better electrical performance and design slimmer and high-performance handset designs that provide improved battery time. The announced that the technology would enter mass production in 2007, for NAND Flash packages initially. And that they planned to use WSP for server DRAM stack packages sometime down the road.

A year later, in April of 2007, the headlines were âÂ??Â?? IBM has announced that they’re relatively close to going commercial with a "through silicon via" (TSV) technology that will enable them to create high-bandwidth connections between two or more chips in a stacked packaging format." The big news about IBM’s design is that the company intends to start shipping product samples based on this technology in the second half of this year, with full production coming in 2008. "Looks as if TSV will be here faster than anyone previously thought."

Now, thirteen years later ASET is in its 3rd incarnation âÂ??Â??the Dream Chip programâÂ??Â?? , it is obvious that DRAM will be stacked before NAND flash hopefully in HVM by 2013 (not 2007) , IBM has announced a major memory program with Micron (though not in 2008) and we are still awaiting any word of commercialization from Intel. Certainly itâÂ??Â??s fair to say that this is taking a bit longer than we all thought, even those of us who were trying to be ultra conservative.

Micon / IBM  HMC âÂ??Â?? further details

IFTLE has been sent a few messages asking for further details on the Hybrid memory cube production.

Micron has announced that they will be manufacturing the memory layers and have contracted with IBM to manufacture the logic layer. Micron will be doing the assembly of the layers at a yet to be disclosed location. For now we can assume they are doing the initial production in Boise. For our initial discussions on this technology see IFTLE 74, ��?The Micron Memory Cube consortium��?.

The technology described by M. G. Farooq of IBM last December at the IEEE IEDM [ see IFTLE 82 âÂ??Â??3DIC at the 2011 IEDM…âÂ??Â??] is the technology being used to create the logic layer in the HMC stack (blue layer).

(Click on any of the pictures to enlarge them)

As noted in IFTLE 82, TSVs are integrated at âÂ??Â??fatwireâÂ??Â?? (upper level metal) levels to optimize wire-ability and process complexity with 4 to 12 metal levels including low-k interlevel dielectric (ILD). TSV of less than 100 µm depth were etched with near vertical sidewalls at a minimum pitch of 50 µm. An example of this is shown below. It is believed that the Micron logic layers  are being done in SOI technology.
The logic layer for the HMC parts will be manufactured at IBM’s advanced semiconductor fab in East Fishkill, N.Y., using the company’s 32nm, high-K metal gate process technology [link]


Chipworks has concluded that â�?�? it appears that the TSVs are annular. Once the lower metal / dielectric stack is formed (including the via dielectric for the metal layer that contacts the TSVs), the TSVs are drilled through to the silicon, and then a Bosch etch is used to drill the vias about 100 µm into the substrate, with a minimum pitch of 50 µm. After drilling, a conformal oxide is deposited, the barrier and seed layers are sputtered in, the copper fill is plated in, and any excess copper is CMPâ�?�?d off. The dielectric for the contact level metal is put down, and then the top fat-wire metal levels are conventionally defined.â�?�? [link]

TEL acquires Nexx

Tokyo Electron Limited (TEL) has acquired semiconductor packaging equipment supplier NEXX. Nexx advanced deposition equipment, including electrochemical deposition (ECD) and physical vapor deposition (PVD) tools will be added to the TEL line of products aimed at back end packaging applications and 3DIC.


Long time readers know that this has been a theme identified by IFTLE [ see PFTLE 41, ��? 3D Integration Stays Hot at Semicon West��? or PFTLE 107 "3D News:Applied/Semitool, TSMC, Ziptronix��?

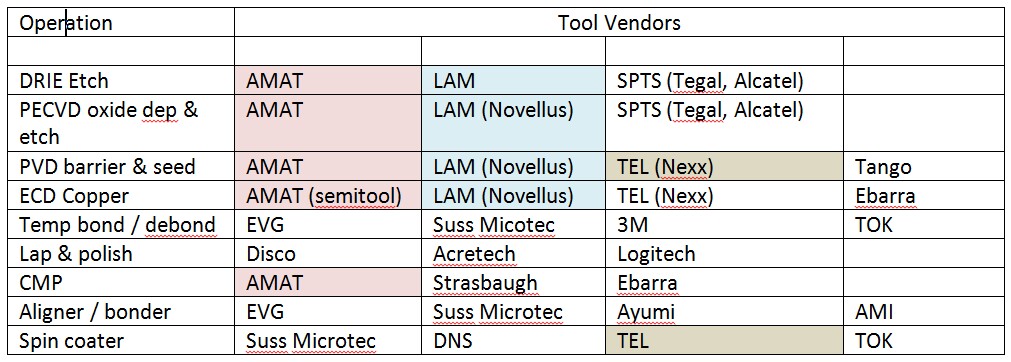

Looks a lot like the front end heavy weights Applied, LAM and TEL are going to buy up all the pieces they need to become the 3 heavyweights in packaging and 3D. Consolidation will continue because with fewer and fewer players moving to 22 nm and beyond packaging is a natural evolution for some of these big front end equipment vendors.

Shin-Etsu Joins EVG Temp Adhesives open platform
Shin-EtsuâÂ??Â??s adhesives will be entering qualification trials on EVGâÂ??Â??s EZR (Edge Zone Release) and EZD (Edge Zone Debond) modules, which support the new ZoneBOND room temperature debonding process. Shin-Etsu is the first participant to announce for the program since its inception late last fall [ see IFTLE 76, âÂ??Â?? Adv Pkging at IMAPS 2011: recent 3D AnnouncementsâÂ??Â??.
EVGâÂ??Â??s ZoneBOND temporary bond / debond  solutions and open materials platform include:  the use of silicon, glass and other carriers; compatibility with existing, field-proven adhesive platforms; and the ability to debond at room temperature with virtually no vertical force being applied to the device wafer.  To support grinding and backside processing at high temperatures and to allow for low-force carrier separation, the concept defines two distinctive zones on the carrier wafer surface with strong adhesion in the perimeter (edge zone) and minimal adhesion in the center zone.  For further description of the technology see IFTLE 90 "Highlights from the IEEE 3DIC 2012 Japan" and refs therein.
For all the latest on 3DIC and advanced packaging stay linked to IFTLE………………
